| When you think of steep
incline conveying, think of NEC VERTSOL Sidewall Belts |
|
Download PDF |
Vertsol Sidewall belts, the proven high-performance and reliable mode of material handling, are
becoming increasingly cost-effective and popular. We offer innovative solutions to specific material
handing problems of steep incline using sidewall belts.

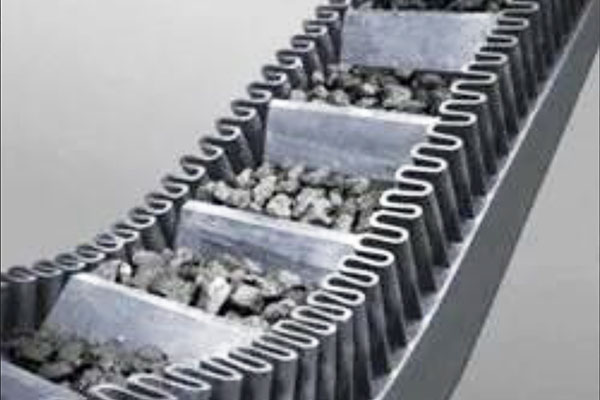

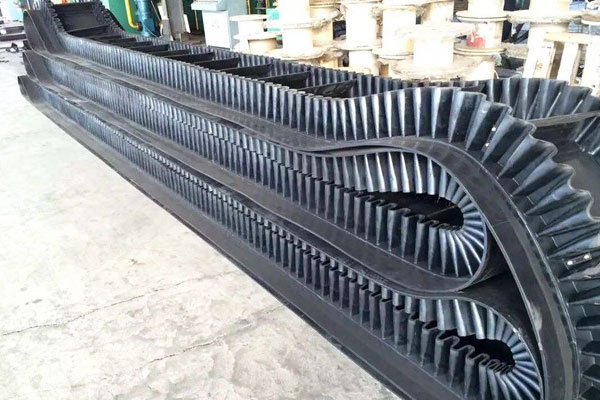

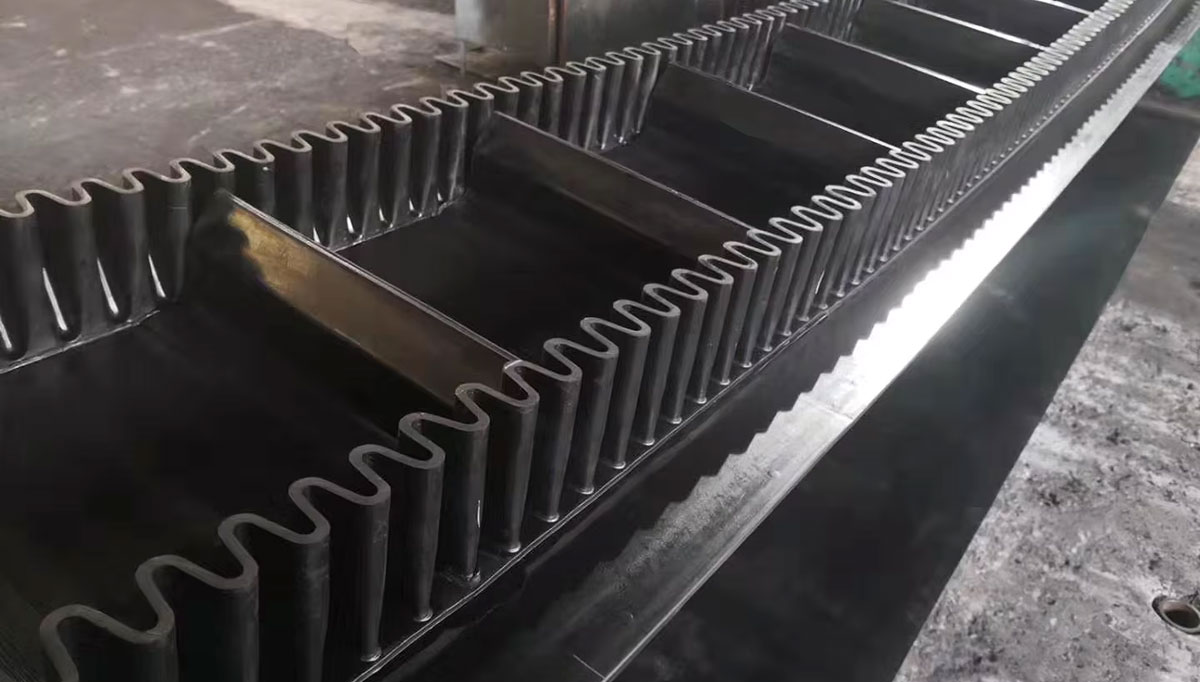

NEC VertSol is a conveyor belt used for conveying
material, specifically useful when there is steep
inclination angle of the system.
The advantage of NEC VertSol Sidewall Belts are that
it increases the handling capacity, no material
spillage and low power & maintenance required.
The complete range of NEC belts is produced
according to the international standards. Therefore
the cross reinforcement of the carcass ensures the
necessary transversal stiffness and prevents from
hitting the full width return idlers.
| The main application fields of this belt are |
| Steel plants |
Cement Plant |
Foundries |
| Batching plants |
Power plants |
Underground mining (coal or ore) |
| Shaft conveying for tunnelling and underground mining |
Ship loading and unloading, ship to ship loading |
Sand preparation in foundry plants |
| Waste recycling, soil purification and water treatment |
Handling of large material flows in the horizontal patn |
|
Range and Types of Sidewall Belts
| TYPE |
Height H [mm] |
Width W [mm] |
Pitch P [mm] |
| 40/30 | 40 | 30 | 25 |
| 40/50 | 40 | 50 | 50 |
| 60/50 | 60 | 50 | 50 |
| 80/50 | 80 | 50 | 50 |
| 100/50 | 100 | 50 | 50 |
| 120/50 | 120 | 50 | 50 |
| 160/70 | 160 | 70 | 55 |
| 200/80 | 200 | 80 | 65 |
| 200/75 | 200 | 75 | 60 |
| 240/80 | 240 | 80 | 65 |
| 240/75 | 240 | 75 | 60 |
| 250/75 | 250 | 75 | 60 |
| 280/75 | 280 | 75 | 60 |
| 300/100 | 300 | 100 | 85 |
| 300/75 | 300 | 75 | 60 |
| 400/100 | 400 | 100 | 83 |
